Free Standing Cattle Panel

Free Standing Panel with 1.66 runners

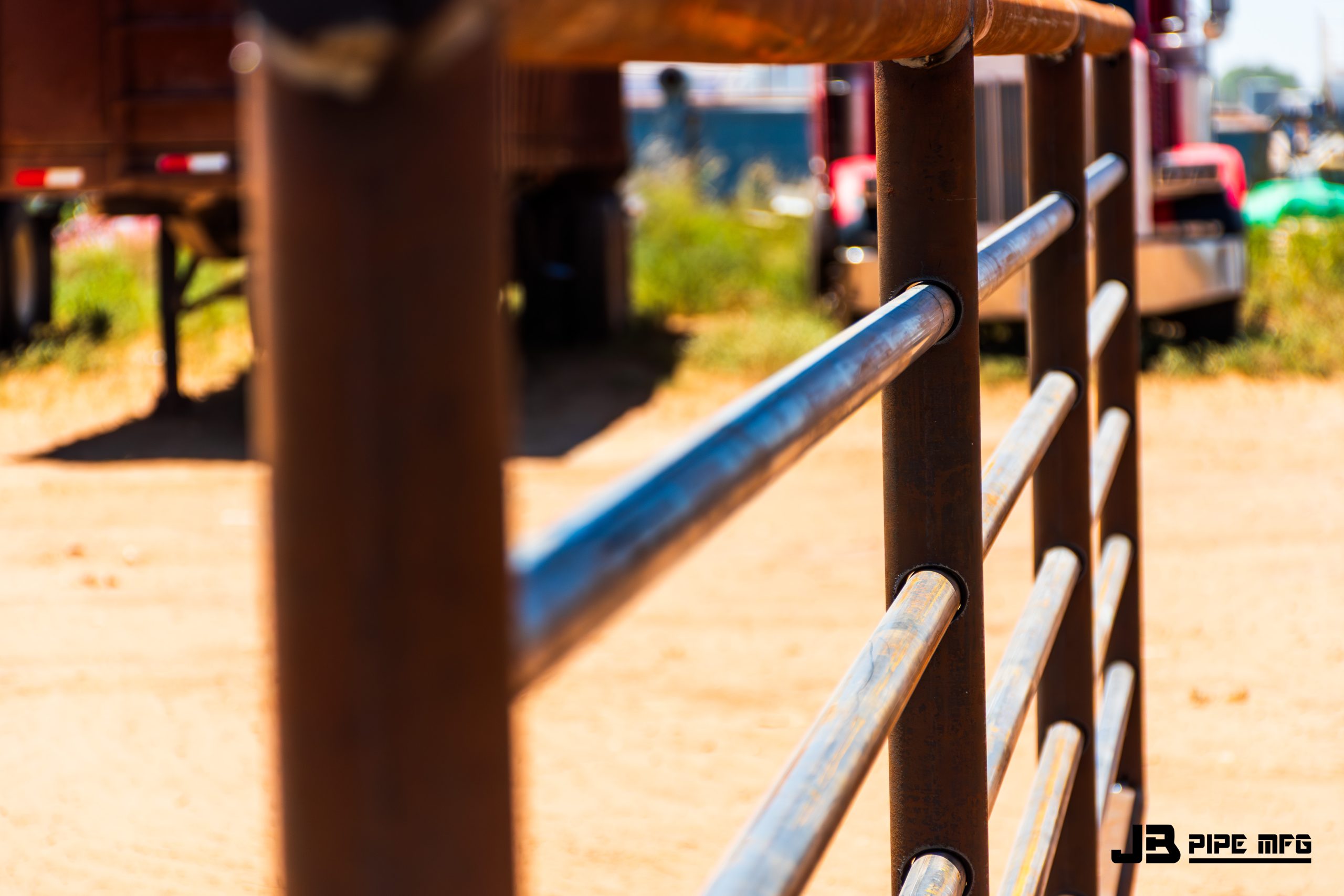

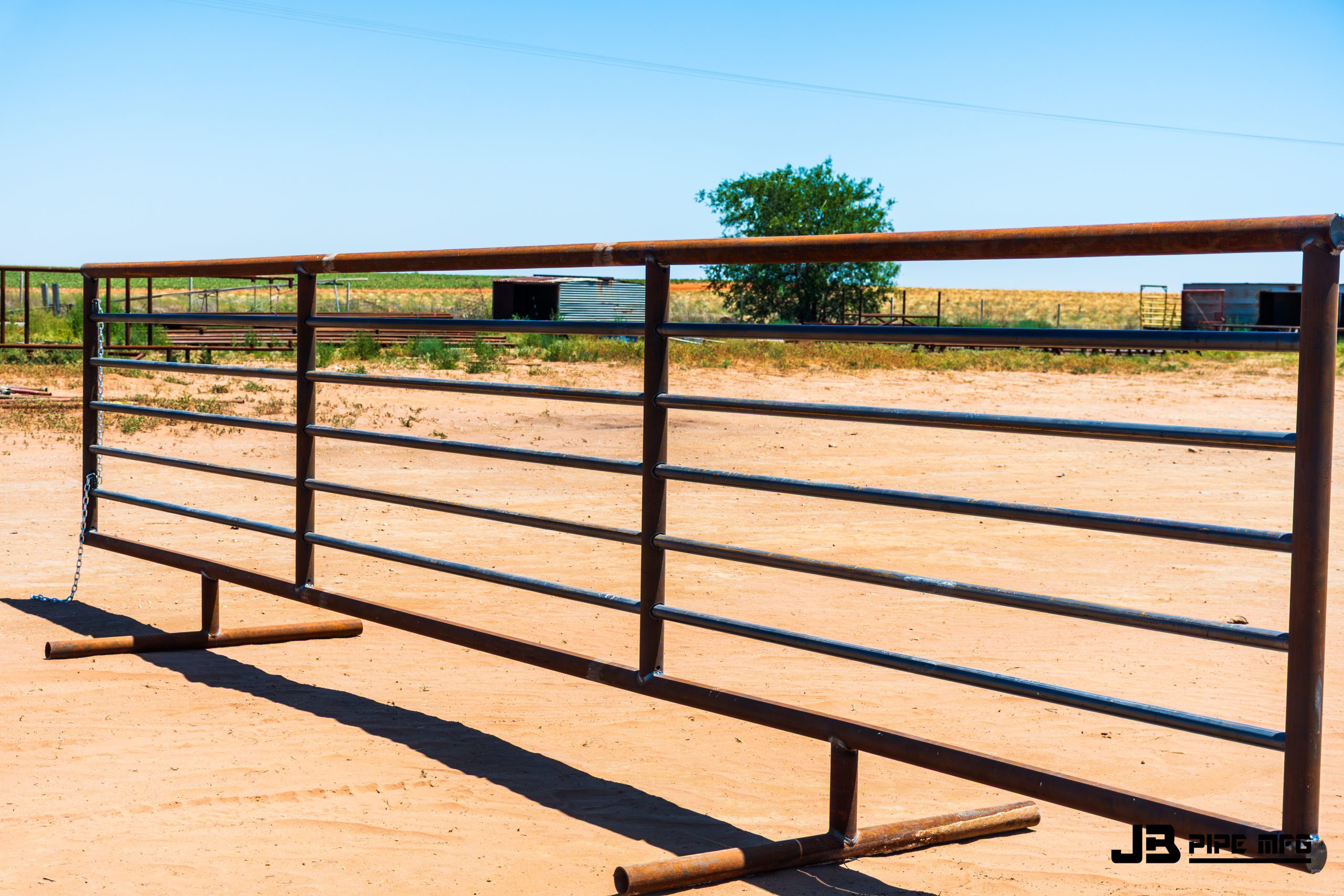

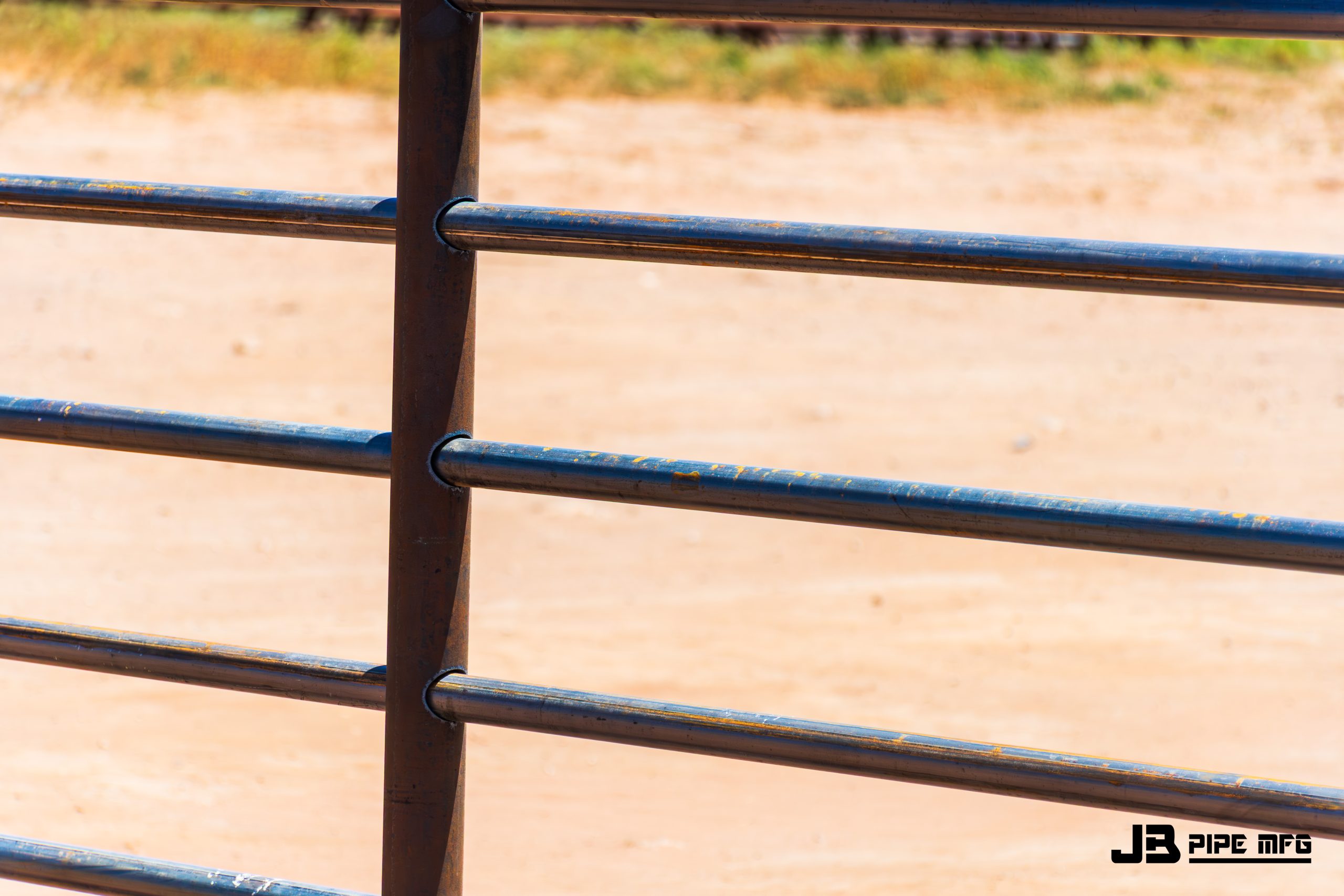

  1. Free Standing Panel with 1.66 runners
  2. Free Standing Panel with 1.66 runners-2
  3. Free Standing Panel with 1.66 runners-3
  4. Free Standing Panel with 1.66 runners-5
  5. Free Standing Panel with 1.66 runners-4
  6. Free Standing Panel with 1.66 runners-6

View In 3D

24 Ft Panel with gate hinge (Right) Drawing
24 Ft Panel with gate hinge (Left) Drawing

Free Standing Cattle Panel Dimensions

Height

5' 6"

Feet Length

56"

Bottom Pipe Off the Ground

12"

Rod Spacing

6"

Weight with 1.66" Pipe

610 lbs

24 Ft Panel with gate hinge (Left) Drawing
24 Ft Panel with gate hinge (Right) Drawing

Standard Connecting Method

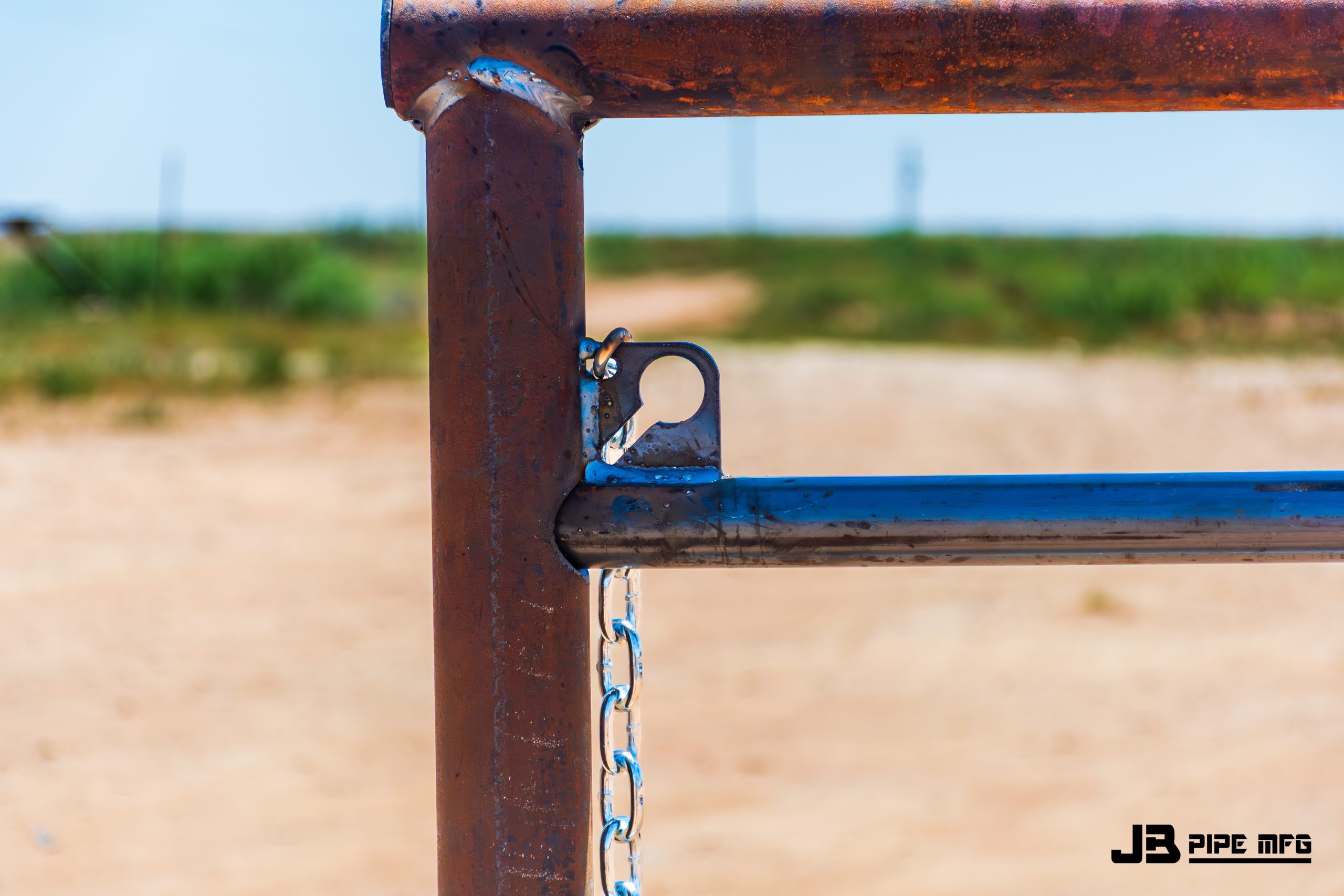

Chain Keeper
  • 3′ Chain – rated 1300 lbs.

"W" Clamps

W Clamps Panel Connectors 1

1 Set:

  • 4-“W” Brackets
  • 2- Bolts
  • 4- Washers
  • 2- Locknuts

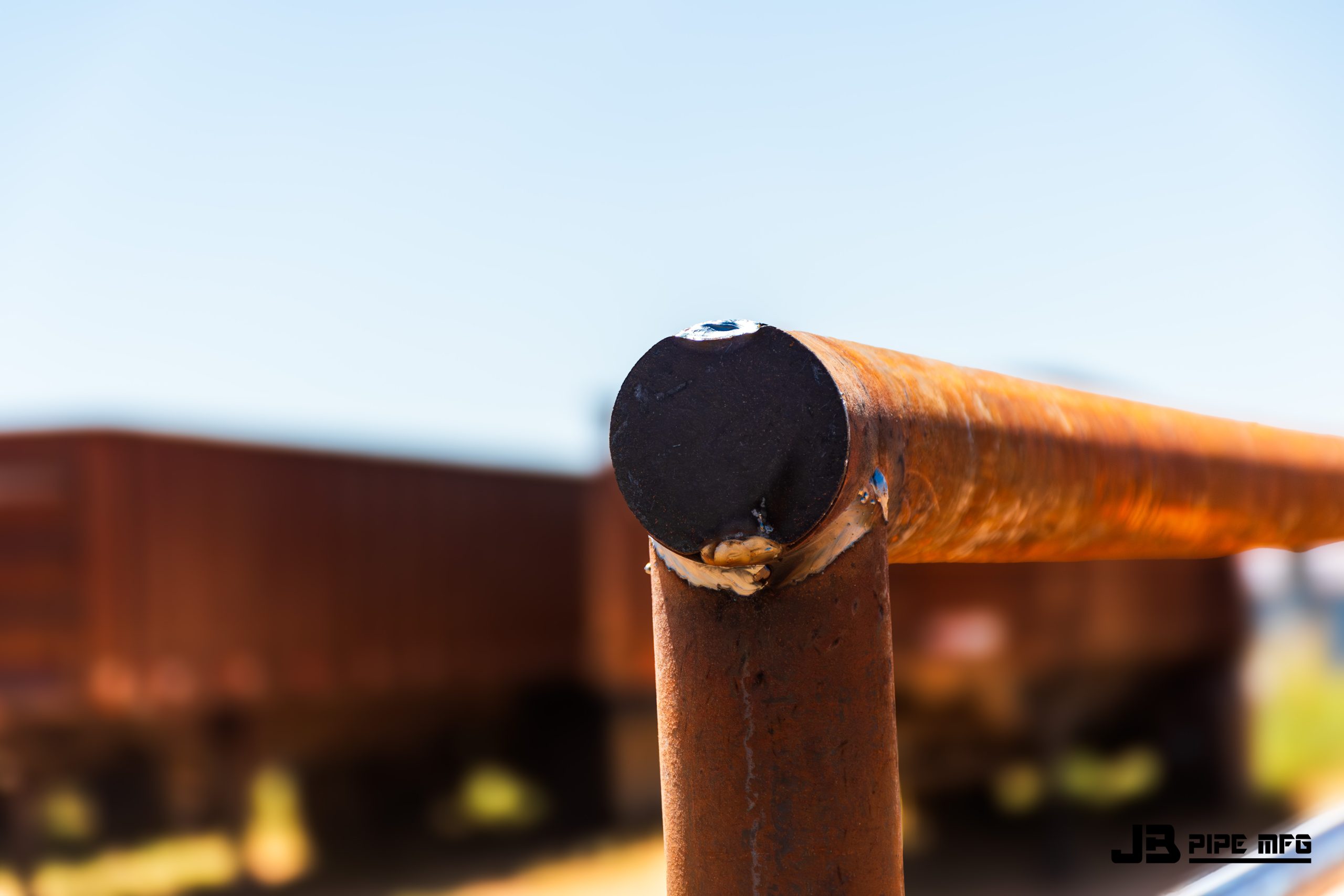

Main Frame is built with 2 7/8” oilfield pipe and cross members are 1.66″ Pipe. All JB Pipe products come with the ends capped. All our cattle panels comes standard with chain, and chain keeper.
